SANYO 109E1712K501 109E1724C501 172x51mm Brushless Axial Fan

Name: SANYO 109E1712K501 109E1724C501 172x51mm Brushless Axial Fan
Brand: MX/OEM/ODM
Price: 21.9 USD

Brand Name : MX/OEM/ODM

Model Number : MX17251

Certification : CE/ROHS

Place of Origin : CHINA

MOQ : 500PCS

Price : usd21.9-39.9

Payment Terms : T/T, Western Union

Supply Ability : 100000pcs/week

Delivery Time : 7-14 working days

Packaging Details : CARTON

Color : Black

Bearing Type : Ball Bearing

Material : Plastic Blade Plastic Frame

Usage : COOLER

Application : Industrial Equipment

Weight : 780g

Contact Now

109E1724C501 dc brushless axial fan, SANYO 109E1712K501 high airflow ventilation fan 172x51

Product Description

Description:

172x51mm DC Fan, low noise and long life expectancy, are commonly used in HVAC systems,machinery for heating, ventilating, air conditioning, drying, dehumidifying, etc. Such as electronic air cleaner , hand dryers,electronic oven, gas oven, electronic fireplace, gas fireplace, electric fan good balance condition,etc.

A. General Specifications:

• Frame and Impeller: Frame: Aluminum, Impeller: Plastic (Flammability: UL 94V-1).
• Expected life : See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60ºC, rated voltage).
• Motor protection function : Locked rotor burnout protection, Reverse polarity protection.
• Direction of rotation: 50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and frame).

• Insulation resistance :10 MΩ or more with a 500 VDC megger (between lead wire conductors and frame).

• Sound pressure level (SPL) : At 1 m away from the air inlet.
• Operating temperature range: -10 to +70ºC (Non-condensing).
• Storage temperature : -30 to +70ºC (Non-condensing).
• Lead wire : Red Black or Blue (Sensor).
• Mass : 780g.

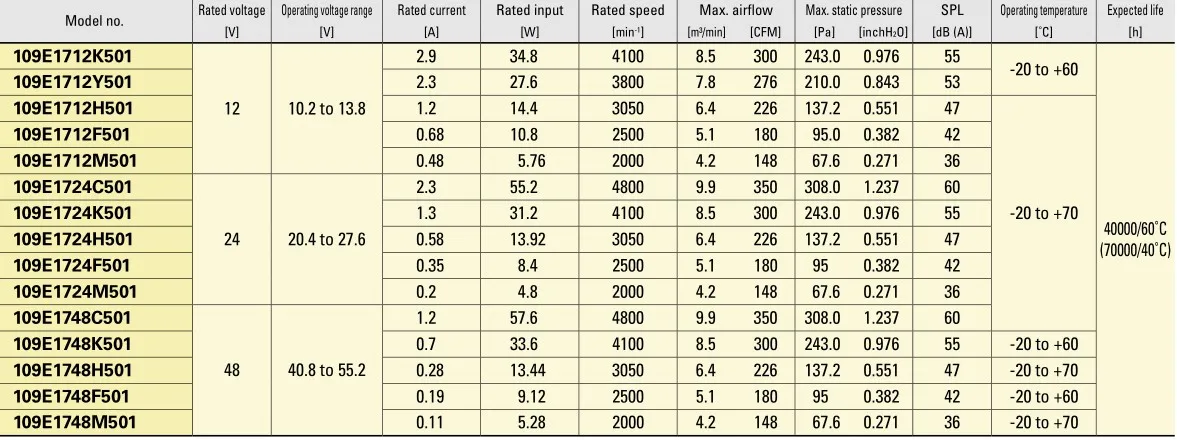

B. General Specifications:

The models listed below have ribs and pulse sensors.

SANYO 109E1712K501 109E1724C501 172x51mm Brushless Axial Fan

C:Environmental Specification:

ITEM		Specification. Condition
01	Operating Temp. Range	Temperature	: -15 ℃ ~70℃
		Humidity	:15%~ 90% RH (Frost Eliminated)
02	Storage Temp. Range	Temperature	: -40 ℃ ~80℃
		Humidity	:15%~ 90% RH (Frost Eliminated)

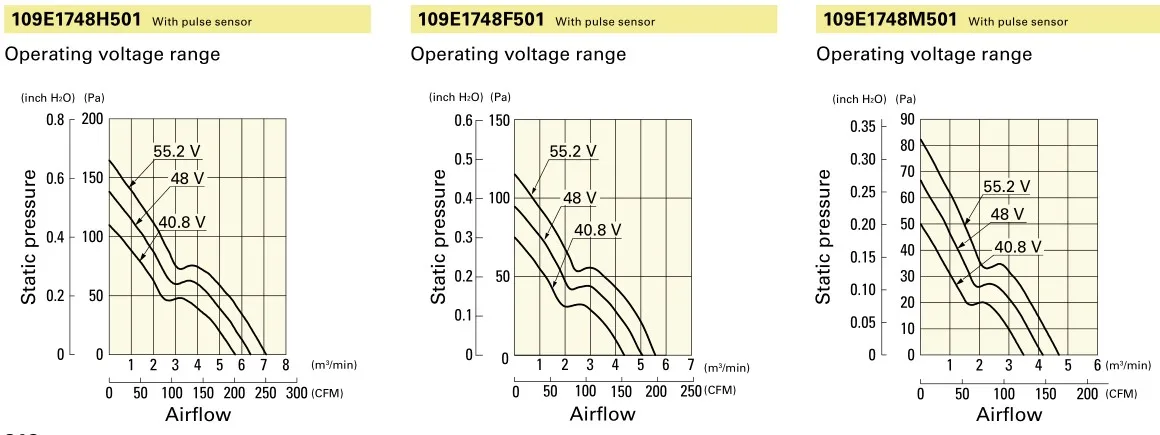

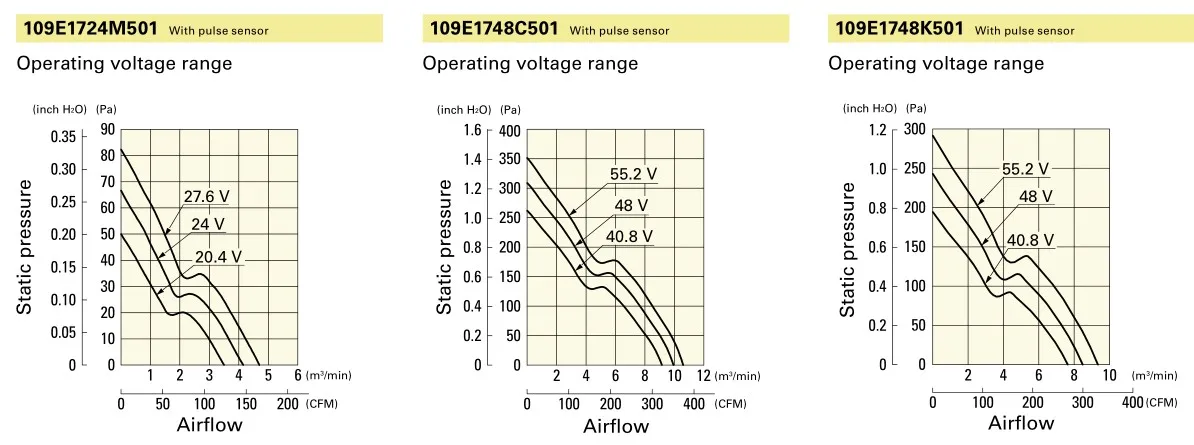

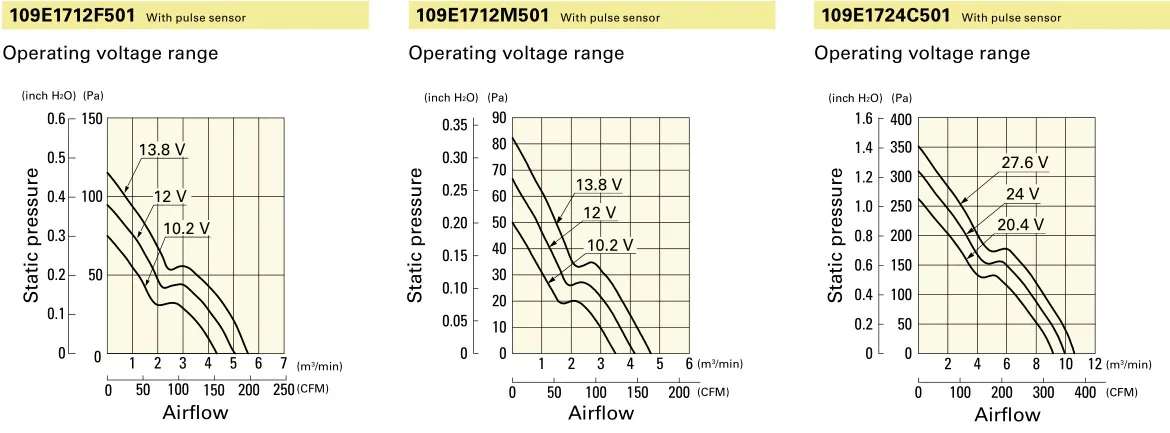

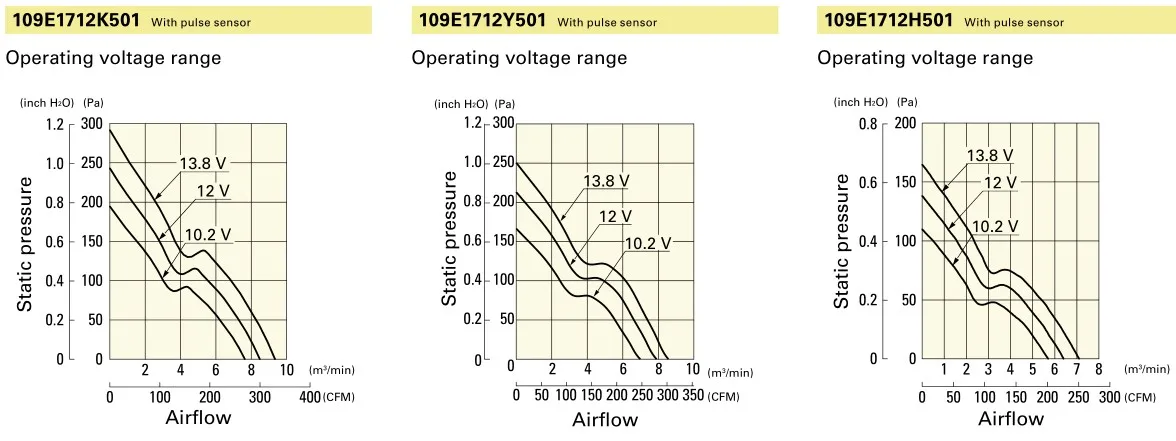

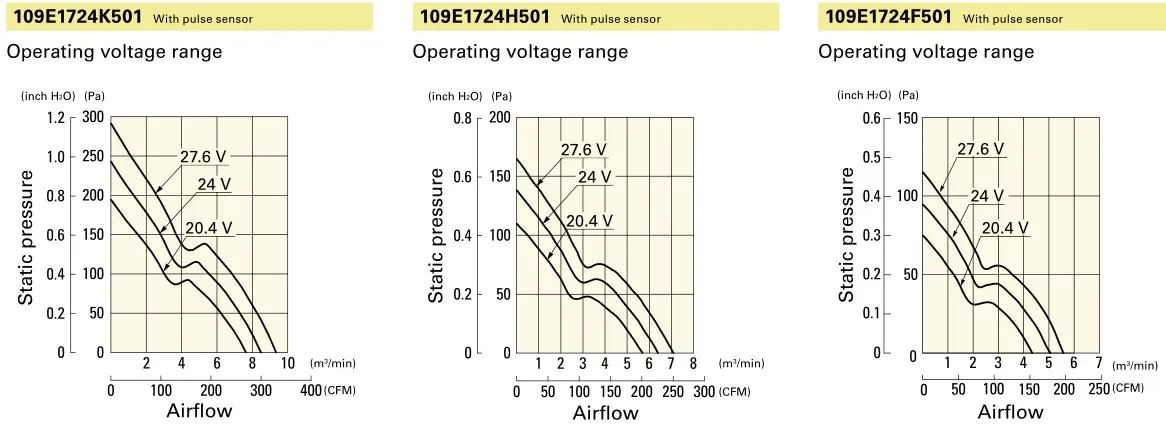

D: Airflow - Static Pressure Characteristics

SANYO 109E1712K501 109E1724C501 172x51mm Brushless Axial Fan

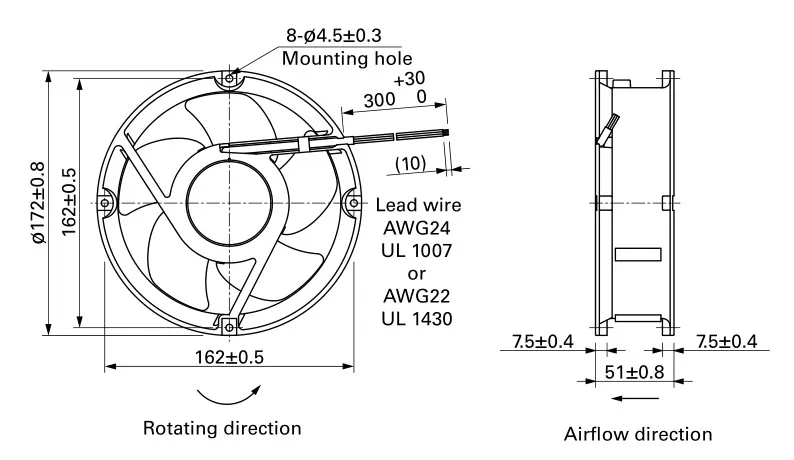

E: Dimensions (Unit:mm)

Packaging & Shipping

You can choose the shipping way by yourself .

You can choose the freight forward company by yourself .

We can arrang the shipment according to your require .

If you have any requirements you could contact me soon .

1.Samples delivery time is 7 working days . ( The quantity of free samples among 2 - 3 pcs . )

2 . Fans quantity : 1K ~ 5K ,the delivery time is 7 ~ 10 working days ;

Fans quantity : over 5K , the delivery time is 15 - 20working days

3 . International express : UPS / DHL / FEDEX and so on .

Our Services

1.We are professtional and experienced manufature of Axial Fan in China.

2.Customization, the size and functions of fan manufacture according to your demands.

3.We’ll reply you in 24 hours after you send inquiry to us.

4.We holding the principle of good faith to manage our company for 25 years.

SANYO 109E1712K501 109E1724C501 172x51mm Brushless Axial Fan Images
