9TN24P1H01 DC Centrifugal Fan For Air Purifier / SANYO Blower Motor 150 ×35mm
150 ×35mm Industrial Equipment Cooling Fan , low noise and long life expectancy, are widely used in the computer information technology, network communications, as well as industrial production equipment, medical equipment, home appliances, etc.
Description:
● Various Size
● High speed , Middle speed, Low speed
● Plastic Frame or Die-Cast Aluminum Frame and Plastic impeller
● 5 blades 7 blades or 9 blades
● 5V DC 12V DC 24V DC or 48V DC
● Ball bearing or Sleeve bearing or Hydraulic bearing
● Terminal or Lead wire
● Waterproof explosion proof or high proof are can be satisfied.
General Specifications
Material :Motor case: Aluminum (Black coating), Impeller: Plastic (Flammability: UL 94V-0)
Expected life:See the table below. (L10 life: 90% survival rate for continuous operation in free air at 60ºC, rated voltage) Expected life at 40ºC is for reference only.
Motor protection function :Locked rotor burnout protection, Reverse polarity protection For details, please refer to p. 573.
·Dielectric strength :50/60 Hz, 500 VAC, for 1 minute (between lead wire conductors and motor case)
Insulation resistance :10 MΩ or more with a 500 VDC megger (between lead wire conductors and motor case) ·
Sound pressure level (SPL):At 1 m away from the air inlet
Storage temperature :-30 to +70ºC (Non-condensing)
Mass :330 g
Specifications
The models listed below have pulse sensors with PWM control function.
| Model no. | Rated voltage | Operating voltage range | PWM duty | Rated current | Rated input | Rated speed | Max. airflow | Max. static pressure | SPL | Operating temperature | Expected life | |
| [V] | [V] | cycle*[%] | [A] | [W] | [min-1] | [m3/min] | [CFM] | [Pa] | [inchH2O] | [dB (A)] | [ºC] | [h] | |
| | |
| 9TN24P1H01 | 24 | 20.4 to 27.6 | 100 | 0.62 | 14.9 | 3800 | 3.83 | 135 | 410 | 1.65 | 59 | -20 to +70 | 40000/60ºC | |
| 9TN48P1H01 | 48 | 36.0 to 55.2 | 100 | 0.32 | 15.4 | 3800 | 3.83 | 135 | 390 | 1.57 | 59 | (70000/40ºC) | |
| | |
* PWM input frequency is 25 kHz; models without specifications at 0% PWM duty cycle have zero fan speed at 0%. Max input of 9TN24P1H01: 21.4 W, 9TN48P1H01: 22 W.
Airflow - Static Pressure Characteristics / PWM Duty - Speed Characteristics Example
9TN24P1H01 With pulse sensor with PWM control function
9TN48P1H01 With pulse sensor with PWM control function
Dimensions (unit: mm)

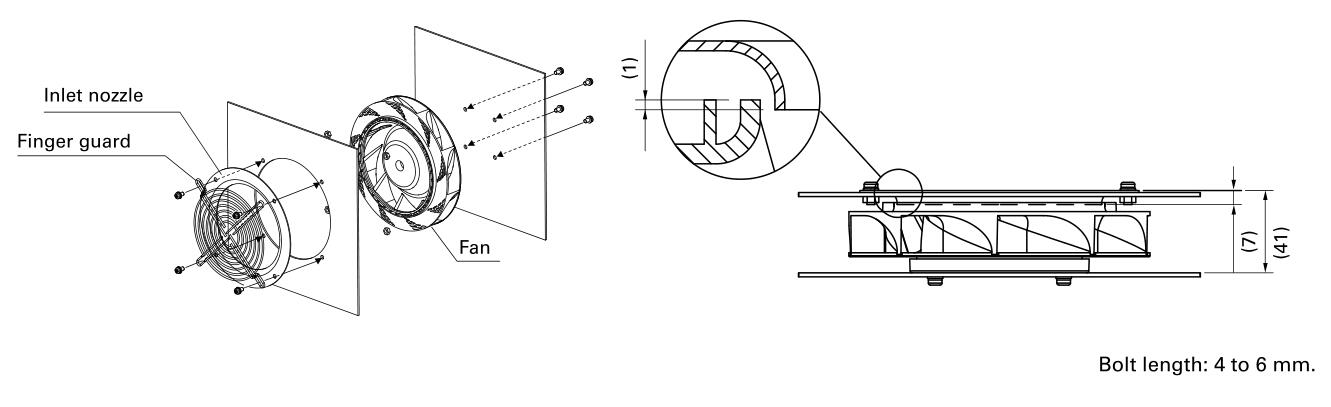

Reference Diagram for Mounting
If you want another rpm or voltage or other reqirement , pls contact me for more details , thanks!
For Special Cooling Fan , Such as : moistureproof , waterprrof , turbocharger , soft start , Reversible , temperature control , PWM speed control , the RD alarm and the FG signal etc , pls contact me free .
